Rivet Archive 1830W

Our Price: £311.19

RRP: £349.65


Total Price: £311.19

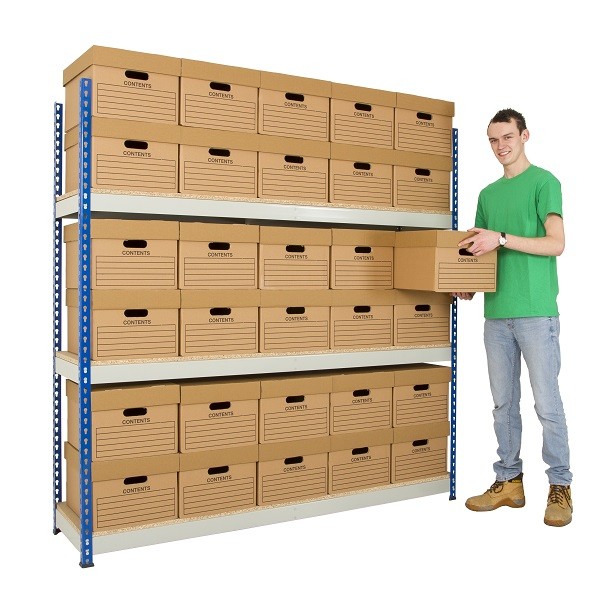

Rivet Archive 1830W

1830mm wide bays.

The Rivet Archive range is the perfect solution for high density paper storage and archiving. The range of Archive Storage Solutions is formed from our Heavy Rivet range combined with high quality Heavy Duty Archive boxes. Each individual box offers a loading capacity of up to 20kg, with shelves supporting a UDL of up to 500kg.
Rivet Archive is available in two depths, three heights and two widths and is perfect for the storeroom, workshop or warehouse.

Rivet Racking uses a central deck support which not only supports the chipboard panel but ties the two face beams together.

Price includes uprights, plastic feet, perimeter beams, deck supports, chipboard decks and archive boxes with lids.

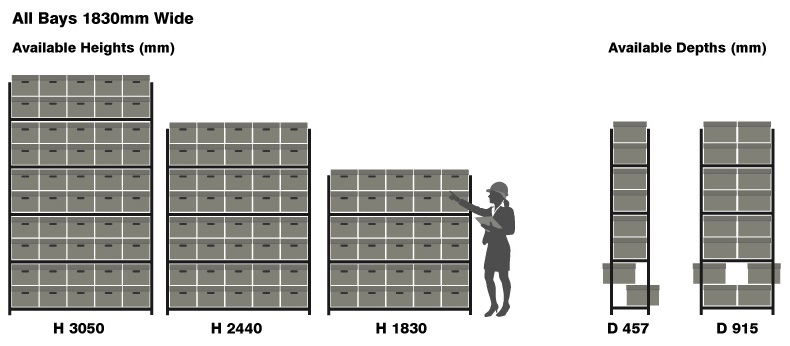

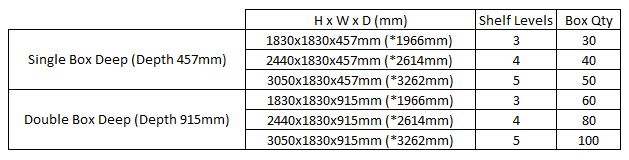

Size Options

Single Box Deep (Depth 457mm)
1830x1830x457mm (*1966mm)
2440x1830x457mm (*2614mm)
3050x1830x457mm (*3262mm)

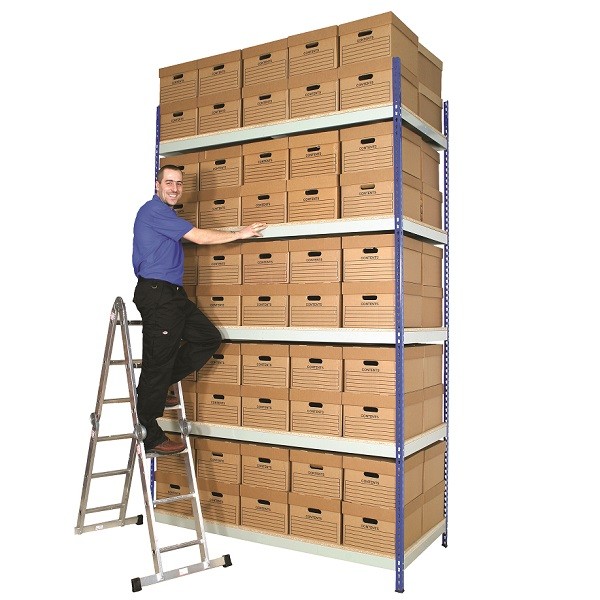

Double Box Deep (Depth 915mm)
1830x1830x915mm (*1966mm)
2440x1830x915mm (*2614mm)
3050x1830x915mm (*3262mm)

*Height to top of top box

Need More Boxes?

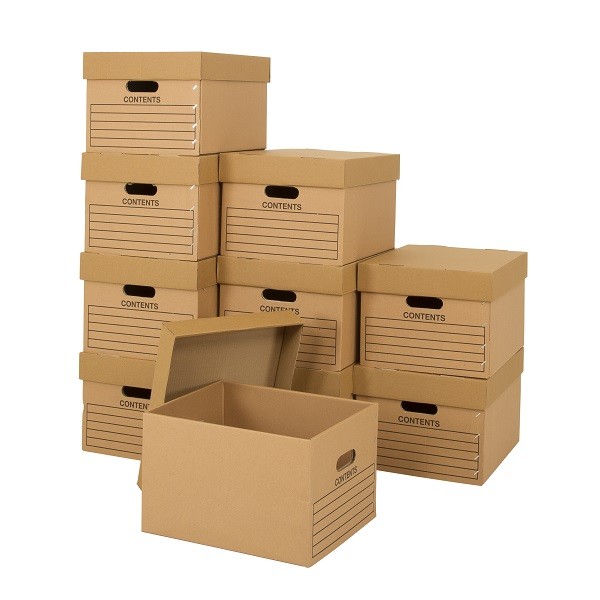

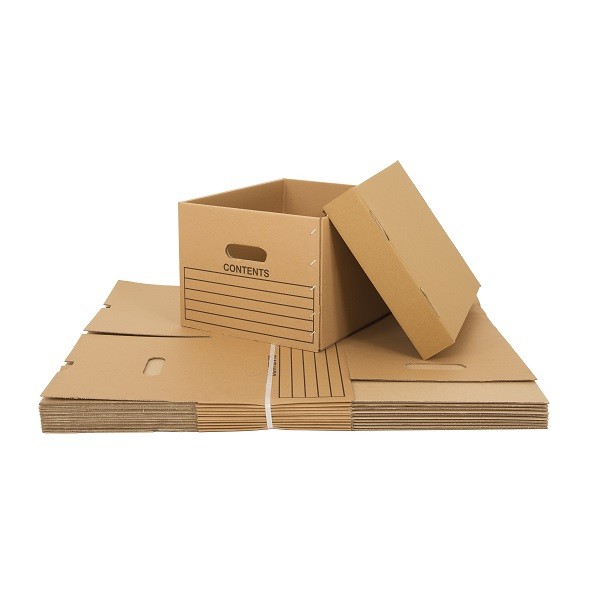

Our Heavy Duty Archive box and lid are designed to hold 20kgs of paper. The robust construction means documents will be securely and safely stored. The boxes come flat packed and are easy to assemble. Boxes come with handle holes for easy transportation and the internal dimensions are 250H x 330W x 390D.

Buy extra archive boxes

Archive Box Assembly Instructions

Assembly Instructions

Heavy Rivet Assembly Instructions PDF

Optional Accessories:
Wall brackets
Metal feet
Floor fixings
Tie Plate

Kwikrack Floor FixingKwikrack Metal Feet

KW wall bracket Tie PlateKW Floor Fixing
